⚡Solder-Seal Heat-Shrink Butt Terminals – Waterproof, Self-Solder, Bulk Pack
Waterproof Wire Repairs Made Fast & Reliable
⚡ Tired of weak, exposed or unreliable wire connections?
Heat, seal and secure your wiring in one simple process. These self-solder heat-shrink connectors combine a solder ring, hot-melt adhesive and protective tubing to create clean, durable connections for automotive, marine, outdoor and DIY wiring.

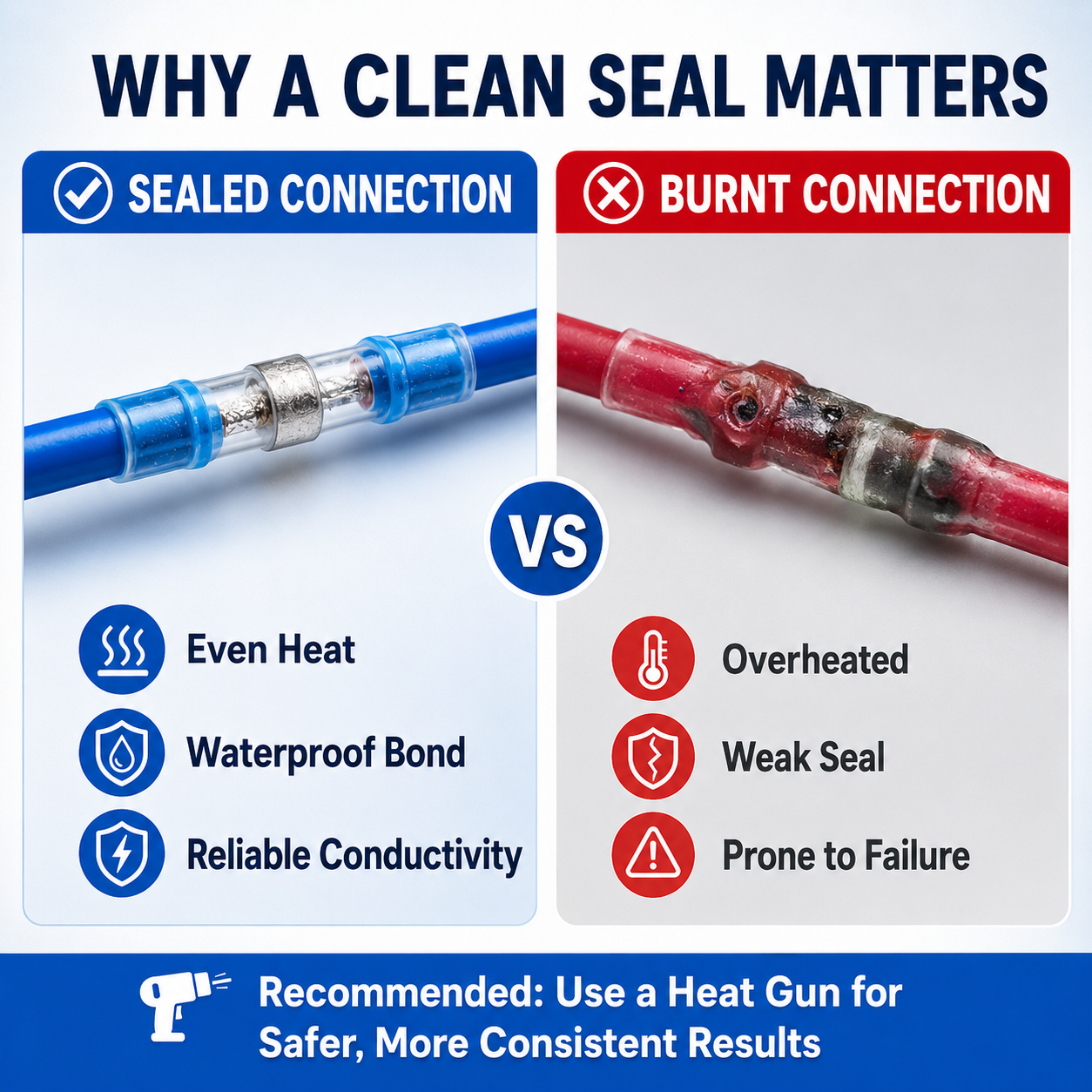

❌ Poor or Overheated Connections
- Uneven heating can burn or damage the connector
- Weak sealing may allow moisture and corrosion to reach the joint
- Exposed connections are more vulnerable to vibration and abrasion
✓ Proper Solder Seal Connection
- Solder melts around the conductors for a secure electrical joint
- Hot-melt adhesive helps seal both ends against moisture
- Heat-shrink tubing protects the finished repair from wear and vibration
🔥 Why It Stands Out

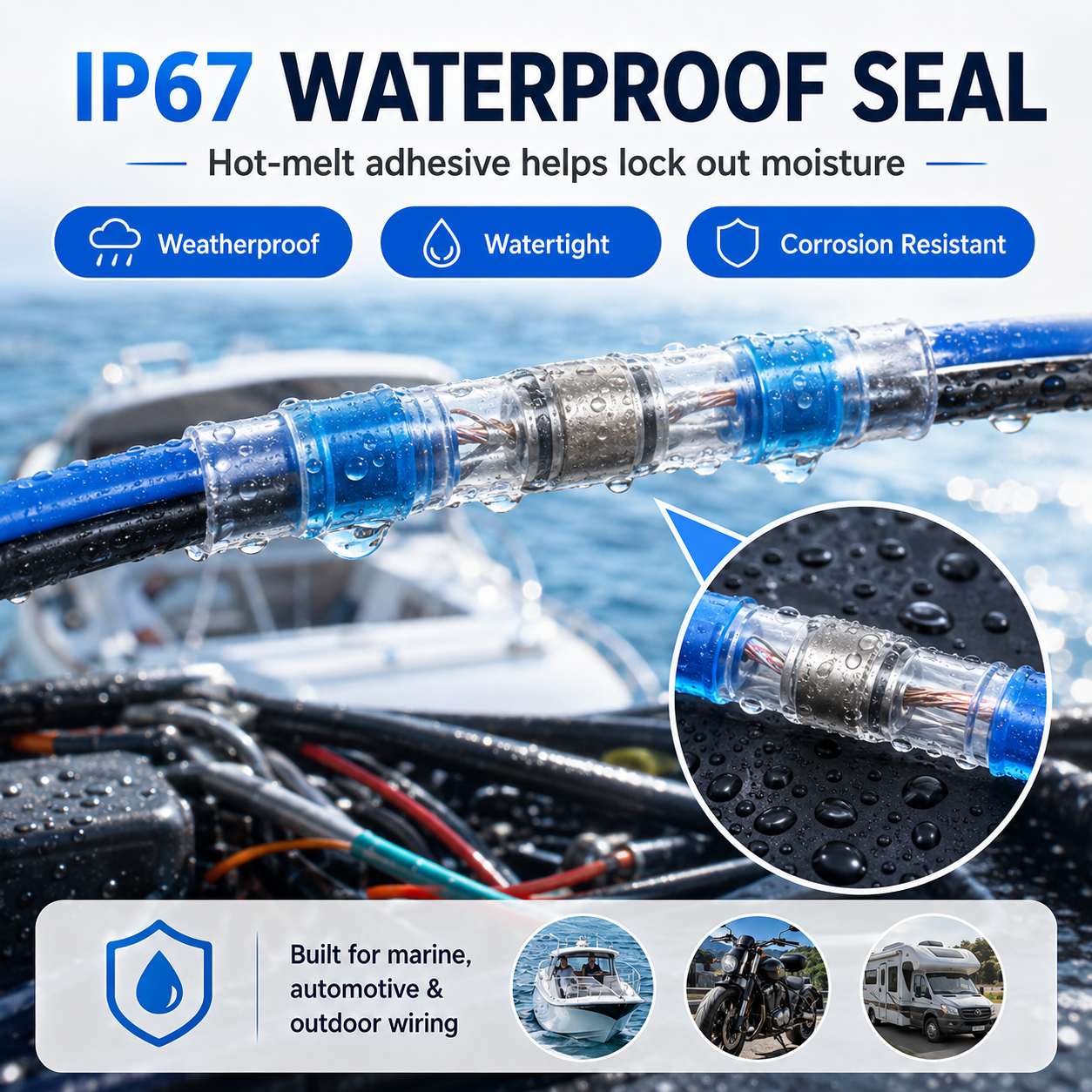

💧 Weatherproof Adhesive Seal
The inner hot-melt adhesive softens during heating and flows around the wire insulation. After cooling, it hardens quickly to help create a tight, long-lasting seal that keeps moisture away from the connection.

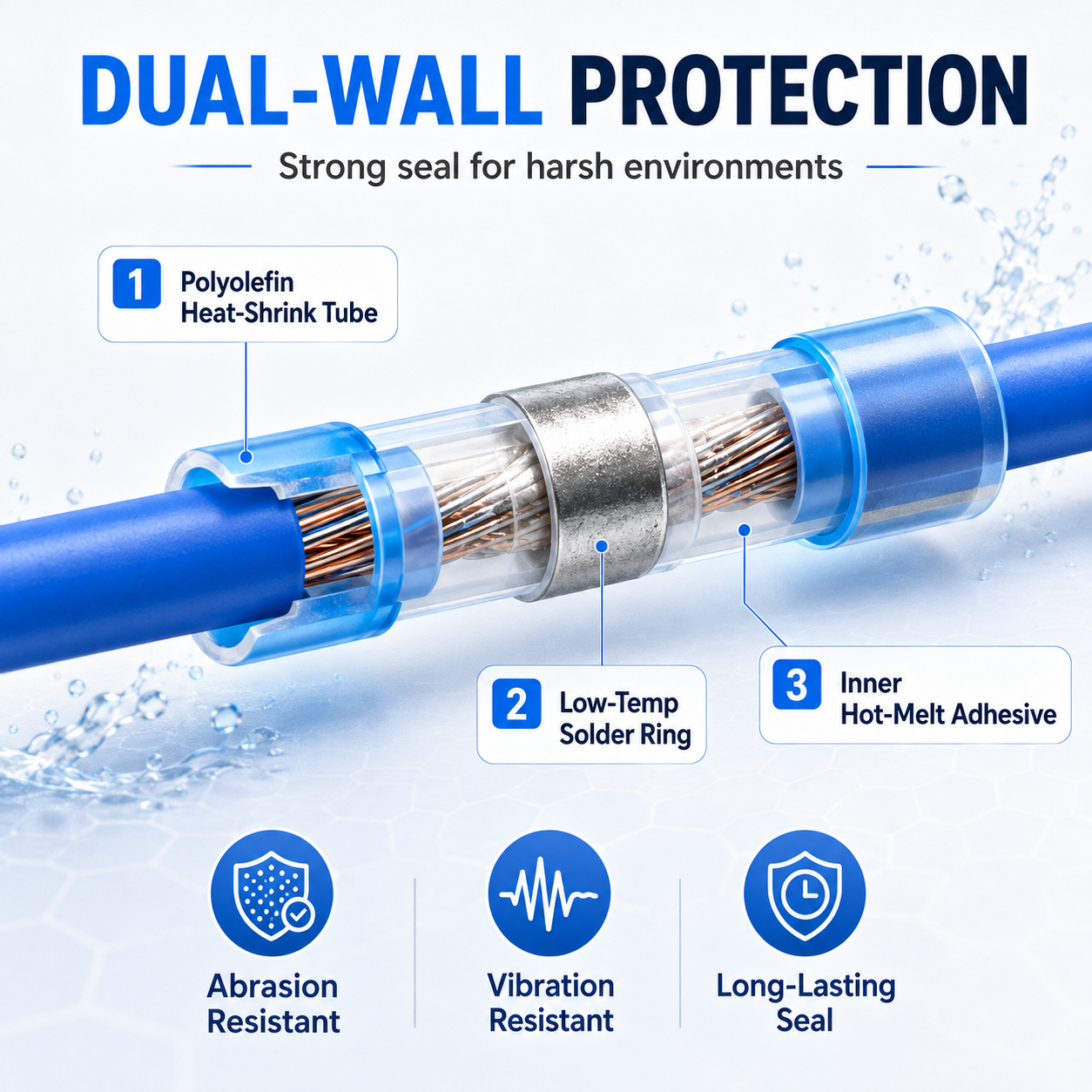

⚡ Premium Self-Solder Ring
A solder ring positioned in the center melts and flows around the stripped conductors as heat is applied, helping create a strong, low-resistance electrical connection without separate manual soldering.
🛡 Abrasion & Vibration Protection
The protective heat-shrink sleeve is designed for demanding environments where wires may be exposed to movement, vibration, scuffing, abrasion and moisture—ideal for automotive, marine, outdoor and general repair applications.
📦 Product Specifications
| Connector Type | Self-Solder Heat-Shrink Butt Connectors |
| Wire Range | 26–10 AWG |
| Connector Quantity | 100 Assorted Connectors |
| Heat-Shrink Tubes | 200 Pieces Included |
| Maximum Voltage | 600V |
| Maximum Current | 5A–24A Depending on Connector Size |
| Working Temperature | -67°F to 257°F |
| Minimum Shrink Temperature | 175°F |
| Minimum Solder Melt Temperature | 280°F |
| Dielectric Strength | 1kV |
| Waterproof Level | IP67 |
| Main Components | Heat-Shrink Tube · Solder Sleeve · Hot-Melt Adhesive |
| Applications | Marine · Automotive · Outdoor Wiring · Home Wiring · DIY Repairs |
| Compliance | RoHS · ISO · SGS · CE |

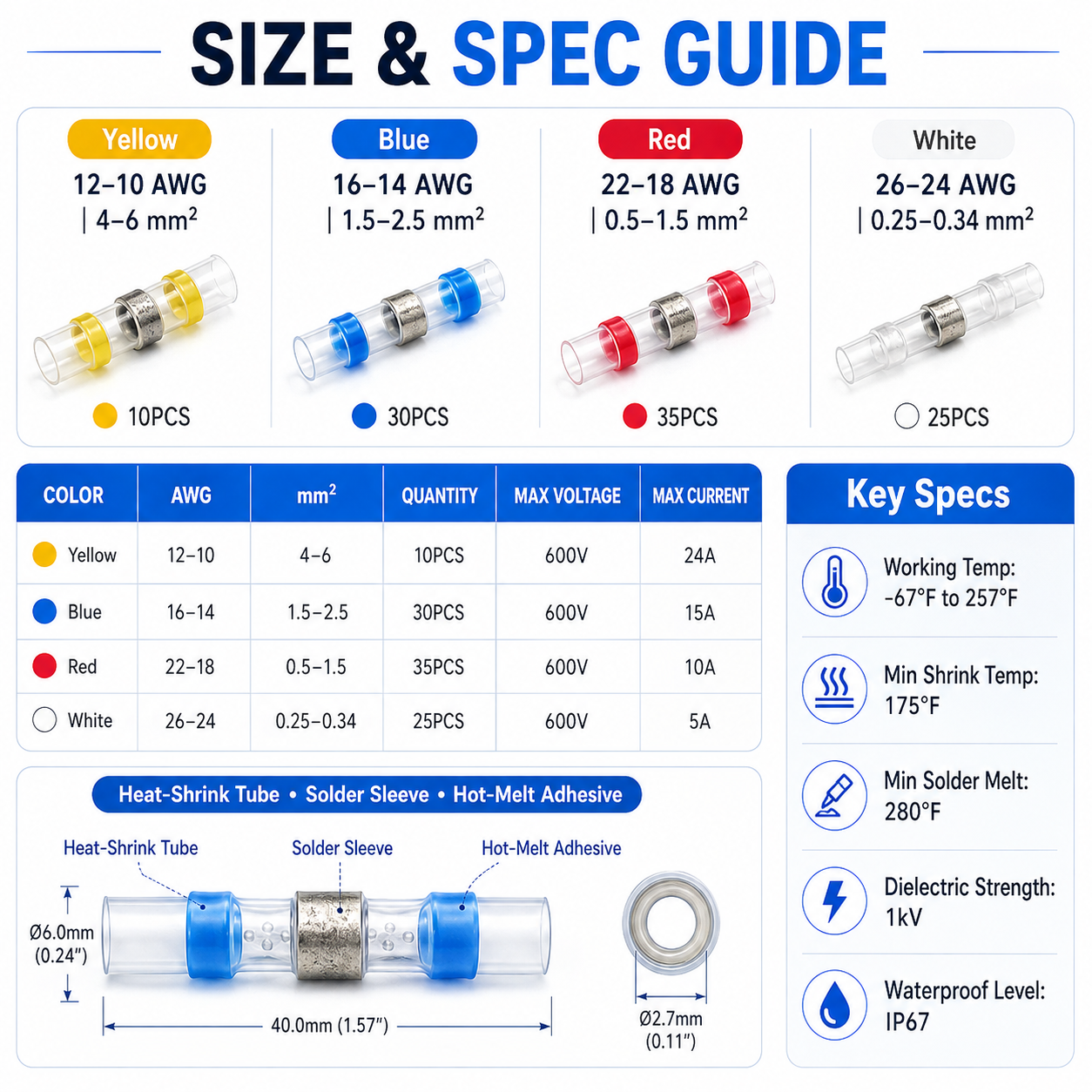

Color-Coded Wire Size Guide
| Color | AWG | Wire Size | Qty | Max Voltage | Max Current |
|---|---|---|---|---|---|
| Yellow | 12–10 | 4–6 mm² | 10 PCS | 600V | 24A |
| Blue | 16–14 | 1.5–2.5 mm² | 30 PCS | 600V | 15A |
| Red | 22–18 | 0.5–1.5 mm² | 35 PCS | 600V | 10A |
| White | 26–24 | 0.25–0.34 mm² | 25 PCS | 600V | 5A |
❓ Frequently Asked Questions

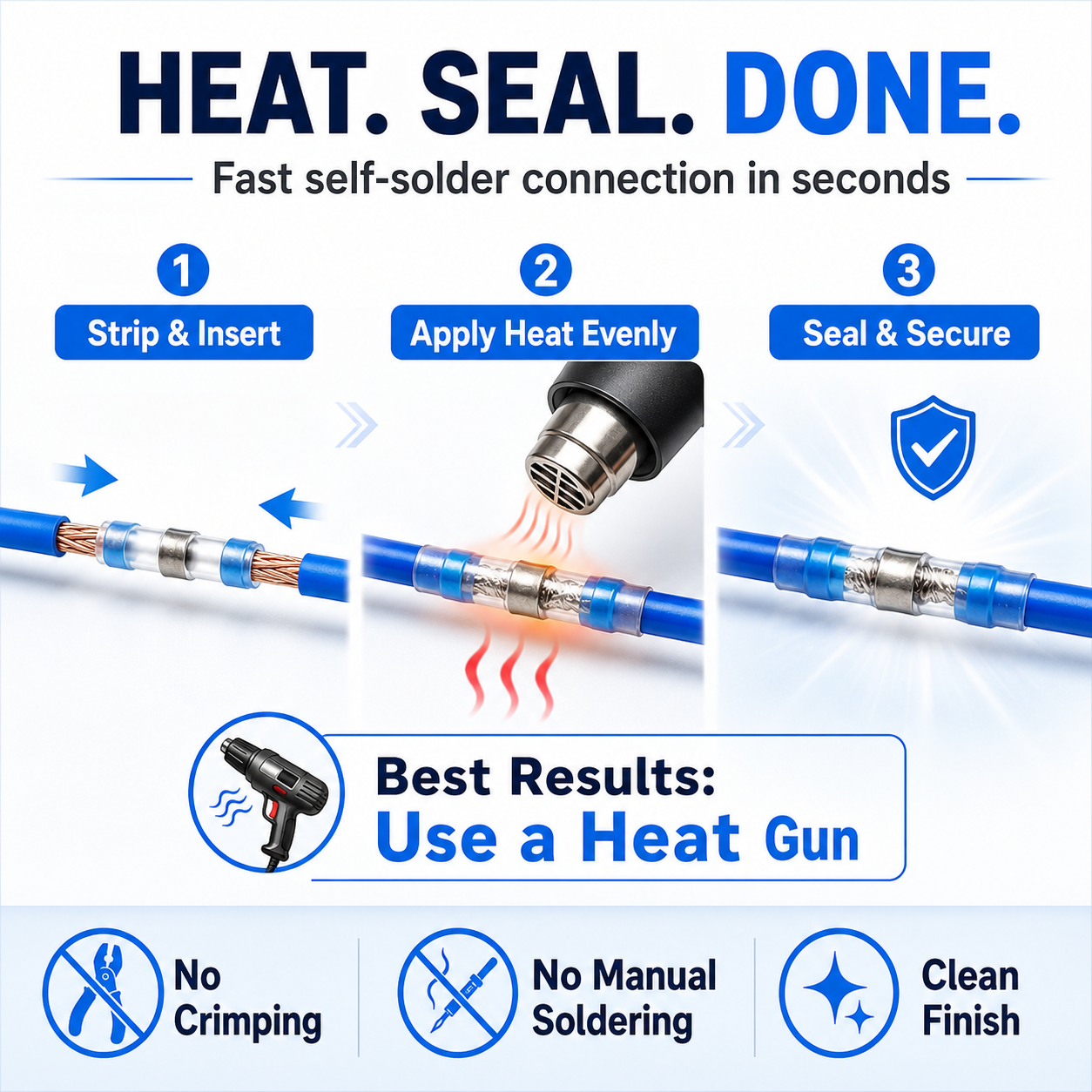

How do I use the solder seal connector?
Strip the wire ends, insert them from opposite sides of the connector and overlap the conductors beneath the center solder ring. Apply heat evenly until the tubing shrinks, the adhesive seals the ends and the solder flows around the conductors.
Should I use a heat gun?
Yes. A heat gun is strongly recommended because it provides more even and controlled heat, helping reduce the risk of overheating, burning or damaging the connector.
- Move the heat continuously around the connector.
- Do not hold concentrated heat on one spot for too long.
- Heat until the solder flows and the tubing seals tightly.
Can I use a lighter?
A lighter can be used with caution, but a heat gun is the safer and more consistent choice. If an open flame is used, keep it at a safe distance and move it continuously.
- Use the lower blue portion of the flame rather than the hotter upper yellow flame.
- Never hold the flame directly against one section of the connector.
- Keep away from fuel, solvents and other flammable materials.
- Work in a well-ventilated area.
Where can these connectors be used?
They are suitable for many low-voltage wiring repairs where a sealed, protected connection is required, including automotive wiring, motorcycles, boats, RVs, trailers, outdoor equipment, household wiring projects and general DIY repairs. Always match the connector size and electrical rating to your application.
